High Overload 0.16Nm 24V Frameless Brushless DC Motor

Place of Origin : China

Brand Name : OEM

Certification : CE/ISO/ROHS

MOQ : Negotiable

Price : Negotiable

Packaging Details : with export carton

Delivery Time : 15-25days

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 25000pc/month

Protect Feature : insulation class B

Continuous Current(A) : 2.69A

Motor type : Brushless DC motor frameless motor

Rated voltage : 24VDC

No load speed : 4480rpm

Rated speed : 2800rpm

Rated torque : 0.16Nm

Rated output power : 46.9 W

Contact Now

High Overload 0.16Nm 24V Frameless Brushless DC Motor
Product Description

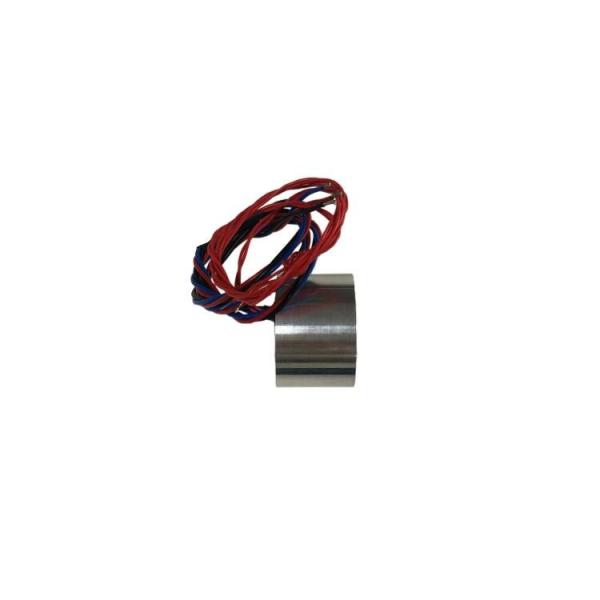

DC Frameless Motor
Frame size:40mm
Rotor diameter:20mm
This motor has high power density, high overload ability and easy to mount.
Product Paramenters
Unit
Value
Rated voltage
VDC
24
No-load speed
RPM
4480±10%
Rated speed
RPM
2800±10%
Rated torque
Nm
0.16
Rated current
A
2.69
Rated output power
W
46.9
Outside Drawing
High Overload 0.16Nm 24V Frameless Brushless DC Motor
High Overload 0.16Nm 24V Frameless Brushless DC Motor
Our Services
- Quality assurance
- Proactive behavior and innovative thinking
- Technical consultancy and support in pre- & after sales
- Competitive prices and on-time deliveries
- Professional, cooperative partners in Europe and Asia
FAQ
1. How to choose a suitable electric motor?
If the usage with defined voltage,speed and torque ,size of the motor are clear, just find out the close performance one. if not
sure, ask for our help.

2. How can I get the sample motor to check quality and do performance test?
When the requirements are clear to us,we can provide sample.

3. Can you provide detailed technical data and drawing?
Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to you for your evaluation and confirm.

4. How to control the products quality in your company?
With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of our products is well controlled and consistent.
